What is an industrial chiller and how does it work?

An industrial chiller is a closed-loop cooling machine that cools water or a water-glycol mixture through the evaporation-condensation cycle of a refrigerant. The chilled fluid is pumped to process equipment or air-handling coils, picks up heat, and returns to the chiller. The compressor, condenser, expansion valve and evaporator are its four core components.

What is the difference between an air cooled and a water cooled chiller?

An air cooled chiller rejects condensing heat directly to the air via fans; it needs no cooling tower, installs quickly and consumes no water. A water cooled chiller rejects heat through a condenser-water loop and a cooling tower; it offers higher efficiency (lower condensing temperature) but requires a tower, pump and water-treatment infrastructure. At high capacities and in continuously running plants, water cooled is usually more economical.

How do I calculate chiller capacity?

The basic formula is Q = m × c × ΔT: mass flow rate (kg/s) × specific heat of water (4.18 kJ/kg·K) × the inlet-to-outlet temperature difference. The process load, the diversity factor, pipe/storage losses and a safety margin are then added. For a correct selection, ambient temperature, fluid type and target water temperature must also be considered; our team makes the selection free of charge using your project data.

In which cases does a free cooling chiller deliver energy savings?

Free cooling partially or fully disables the compressor when the outdoor air temperature drops below the target water temperature, cooling directly with outside air. In data centers and process plants that require year-round cooling, in temperate/cold climates it can deliver up to 30–40% savings in annual energy consumption.

Is it safe to buy a used or remanufactured chiller?

Remanufactured units undergo a complete overhaul under factory or authorized-workshop conditions; the compressor, condenser and control boards are tested and the unit is supplied with a warranty. This delivers near-new performance at 40–60% lower cost and with a much shorter lead time. All our used units are delivered with a working test report.

How quickly can a rental chiller be commissioned?

In-stock rental units are typically installed on site and commissioned within 24–48 hours. For emergency breakdowns, planned factory overhauls or seasonal peak loads, short- and long-term rental options are offered turnkey, complete with pump set and hose connections.

Air Cooled Chiller

What Is an Industrial Chiller?

An industrial chiller is a closed-loop mechanical cooling system that meets the cooling load required in manufacturing processes or large-scale air conditioning. It works on the principle that the refrigerant absorbs heat from water as it evaporates in the evaporator, is compressed in the compressor, and rejects heat to the surroundings as it condenses in the condenser. The chilled water is carried to the point of use by a pump loop.

Selecting the right chiller is not limited to capacity (kW) alone; the compressor type, refrigerant, condensing method (air/water), part-load efficiency (ESEER) and ambient conditions must all be evaluated together. A poorly chosen unit means both a high energy bill and frequent breakdowns.

Advantages of Air Cooled Chillers

Because air cooled chillers reject condensing heat directly to the air, they require no cooling tower, condenser-water pump or water-treatment infrastructure. This lowers both the initial investment and operating complexity. They are preferred in water-constrained regions and in projects that demand fast installation.

Modern air cooled units run far quieter and more efficiently than a few years ago, thanks to EC fans, inverter-driven scroll/screw compressors and microchannel condenser technologies. When equipped with a free cooling coil, their operating cost in cold climates approaches that of water cooled systems.

Applications of Water Cooled Chillers

Because water cooled chillers can operate at a low condensing temperature through the cooling tower, they are the most efficient solution at high capacities. They are common in data centers, pharmaceutical and food plants, plastic injection and metalworking factories that run continuously under high load.

Water cooled units with centrifugal compressors (including oil-free magnetic-bearing Turbocor) provide both high efficiency and low vibration at capacities above 1,000 kW. Proper design of the tower, pump and water treatment is critical to the system’s service life and efficiency.

What to Consider When Choosing a Chiller

During selection, the real process load and diversity factor should be determined first, then the target water temperature and ambient design temperature should be clarified. Choosing a low-GWP refrigerant (R513A, R1234ze) secures both compliance with F-Gas regulations and long-term refrigerant availability.

Part-load efficiency (ESEER) reflects the range where the unit will operate for most of the year; it is just as important as nominal COP. In addition, spare-parts availability, the service network and lead time directly affect the total cost of ownership. Özsayın offers a brand-independent, impartial selection that takes all of these criteria into account.

Air Cooled Chiller

Technical Filters

Products · 235 results

OzSayın | OZCAEY 233

OzSayın | OZCAEY 238

OzSayın | OZCAEY 245

OzSayın | OZCAEY 250

OzSayın | OZCAEY 260

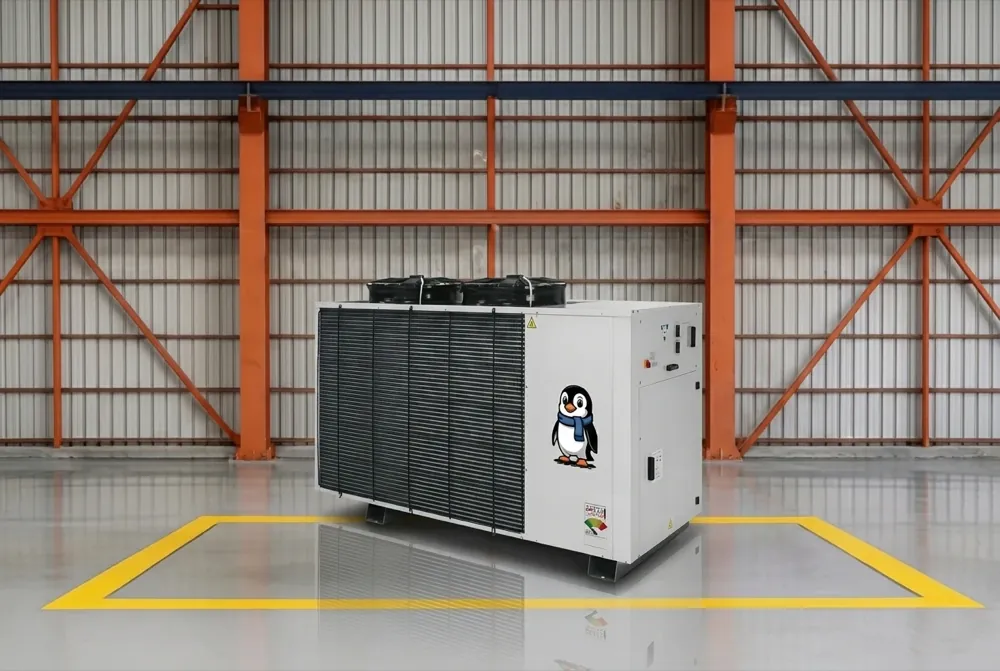

OzSayın | OZCAEY 265

OzSayın | OZ 233

OzSayın | OZ 238

OzSayın | OZ 245

OzSayın | OZ 250

OzSayın | OZ 260

OzSayın | OZ 265

OzSayın | OZ 269 (65.6 kW, Scroll)

OzSayın | OZ 279 (72.1 kW, Scroll)

OzSayın | OZ 289 (77.6 kW, Scroll)

OzSayın | OZ 296 (86.5 kW, Scroll)

OzSayın | OZ 2112 (105.5 kW, Scroll)

OzSayın | OZ 2110 (106.5 kW, Scroll)

OzSayın | OZ 2120 (114.4 kW, Scroll)

OzSayın | OZ 2150 (147.3 kW, Scroll)

OzSayın | OZ 2140 (127.4 kW, Scroll)

OzSayın | OZ 2170 (165.2 kW, Scroll)

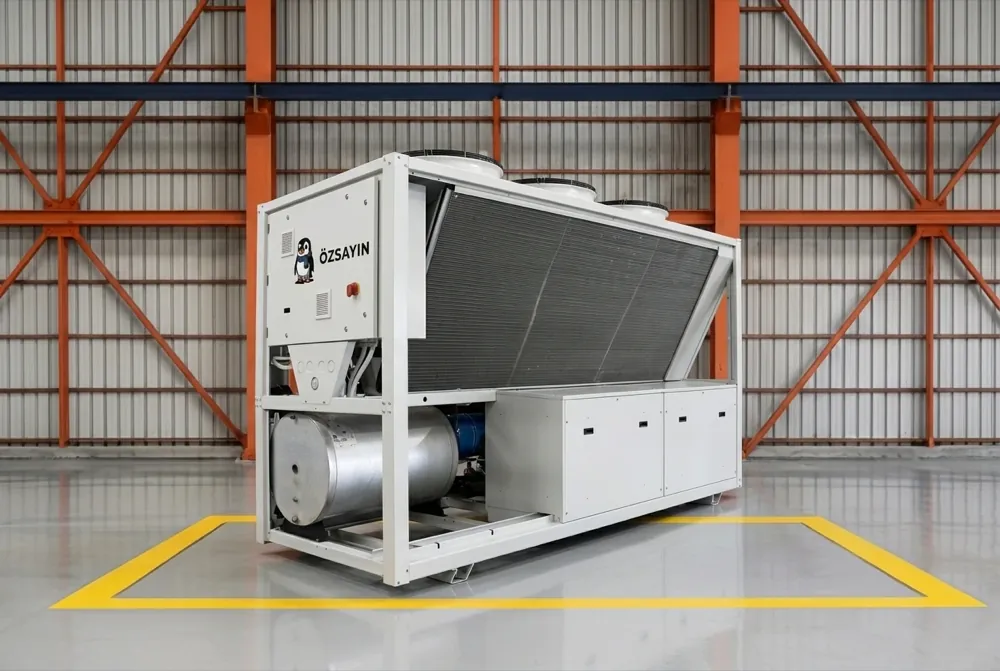

OzSayın | OZ 2200 (188.1 kW, Scroll)

OzSayın | OZ 2220 (212.1 kW, Scroll)

OzSayın | OZ 4360 (359.8 kW, Scroll)

OzSayın | OZ 4390 (389.6 kW, Scroll)

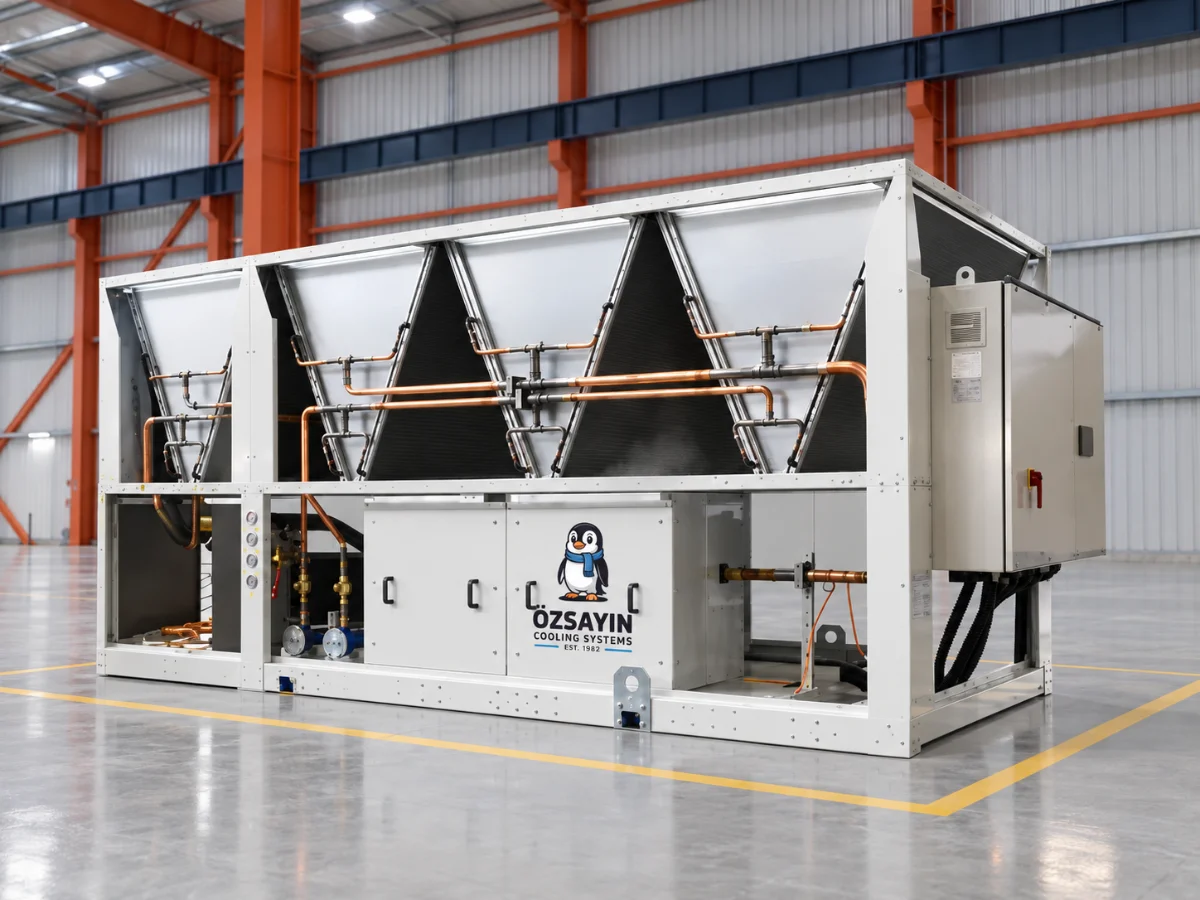

OzSayın | OZ 4435 (434.6 kW, Scroll)

OzSayın | OZ 5500 (496.3 kW, Scroll)

OzSayın | OZ 6540 (538.9 kW, Scroll)

OzSayın | OZ 6590 (567.9 kW, Scroll)

OzSayın | OZ 269 (69.2 kW, Scroll)

OzSayın | OZ 279 (79.1 kW, Scroll)

OzSayın | OZ 289 (90.1 kW, Scroll)

OzSayın | OZ 296 (96.1 kW, Scroll)

OzSayın | OZ 2112 (112 kW, Scroll)

OzSayın | OZ 2110 (110.5 kW, Scroll)

OzSayın | OZ 2120 (121.5 kW, Scroll)

OzSayın | OZ 2140 (138.4 kW, Scroll)

OzSayın | OZ 2150 (156.4 kW, Scroll)

OzSayın | OZ 2170 (175.4 kW, Scroll)

OzSayın | OZ 2200 (200.3 kW, Scroll)

OzSayın | OZ 2220 (223.2 kW, Scroll)

OzSayın | OZ 4240 (241.3 kW, Scroll)

OzSayın | OZ 4270 (276.3 kW, Scroll)

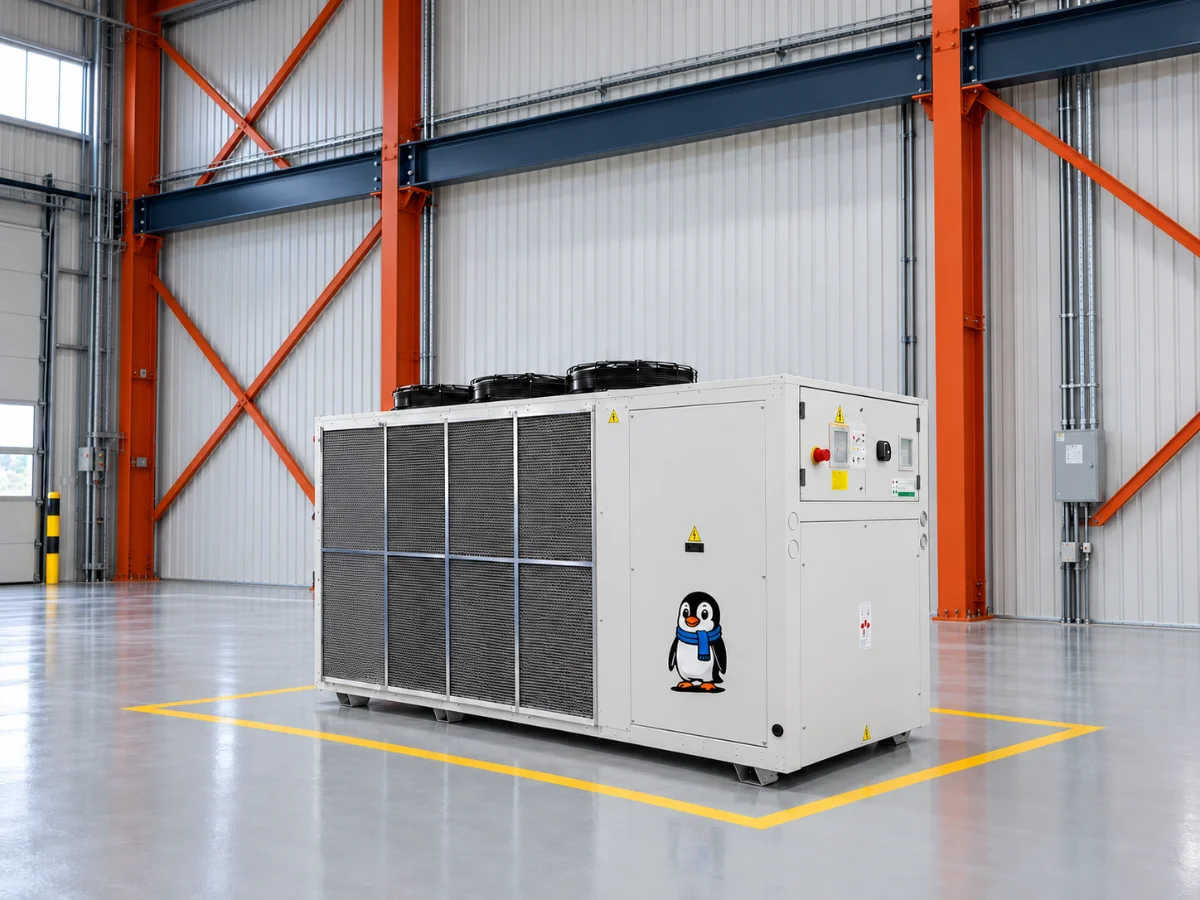

OzSayın | OZ 4310 (309.1 kW, Scroll)

OzSayın | OZ 4340 (345.1 kW, Scroll)

OzSayın | OZ 4385 (385 kW, Scroll)

OzSayın | OZ 4415 (414 kW, Scroll)
